AFX Element Line · Woodgrain extruded aluminum

The warmth of wood. Built in aluminum.

Architectural cladding and soffit with a natural woodgrain finish, a concealed-fastener tongue-and-groove system, and none of the staining, sealing or rot that comes with real wood.

Order finish samples Explore the system

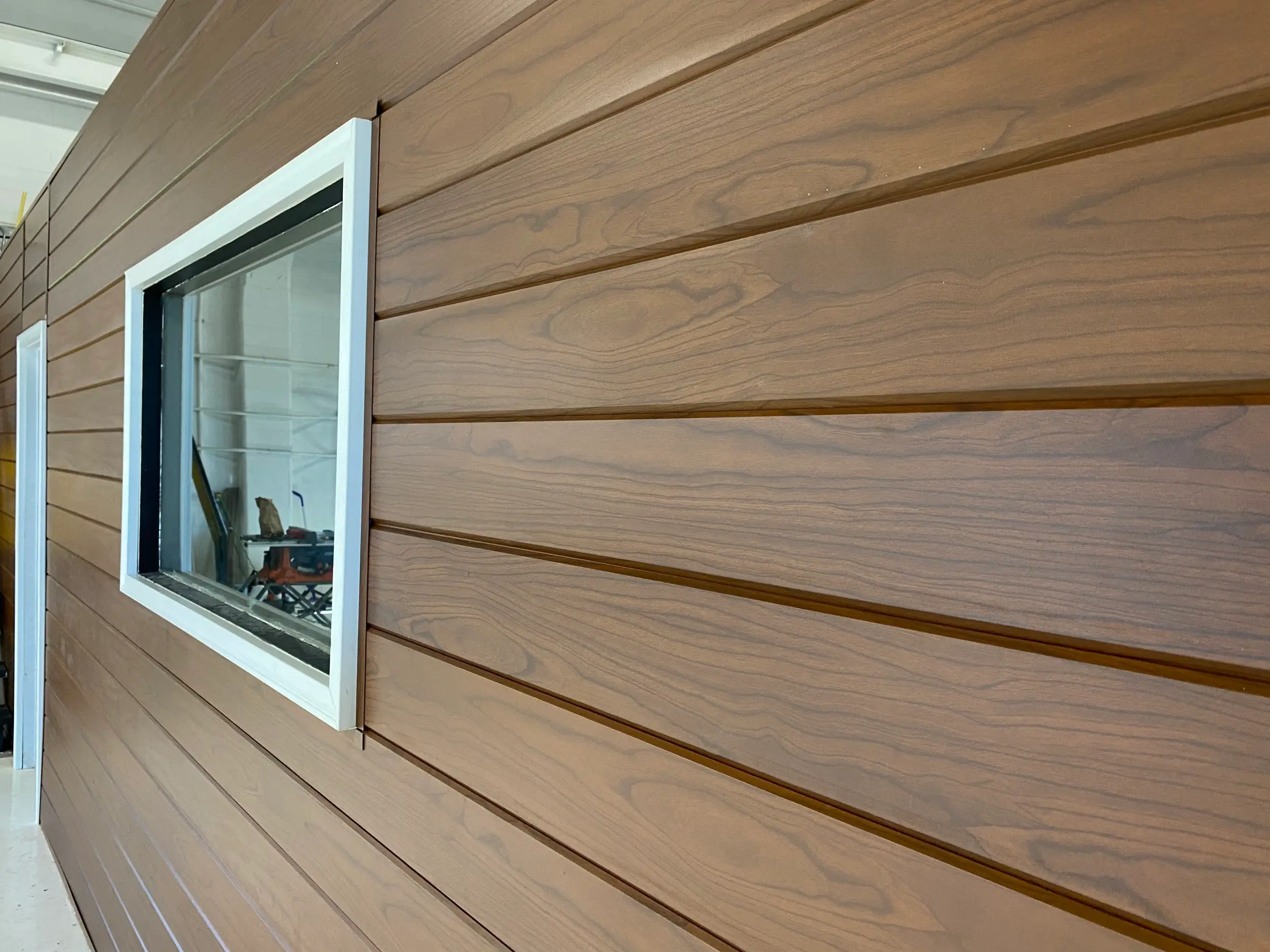

Exterior wall clad in AFX woodgrain aluminum panels around a white-framed window

AFX Element Line · exterior cladding

MaterialPowder-coated 6063-T5 extruded aluminum

FasteningConcealed tongue-and-groove

Profiles4″ and 6″ reveal

Supplied length16 ft / 4.88 m

Why it exists

Wood is beautiful for a few seasons. Aluminum F/X keeps that look for decades, without the maintenance cycle that wears wood out.

Natural wood fades, cracks, warps and needs ongoing staining or sealing. AFX panels give homeowners, builders, developers and architects the same warm, architectural look in a durable exterior finish that’s premium without being out of reach.

01 · Durability

Engineered to last

Powder-coated extruded aluminum that won’t rot, warp, crack or peel.

02 · Detail

Concealed fastening

Tongue-and-groove panels on GripClips leave clean lines with no exposed screws.

03 · Value

Attainable premium

An architect-grade woodgrain look, priced by the square foot for real projects.

04 · Support

Local and accountable

Quoting, delivery and install support from our team in Kelowna, BC.

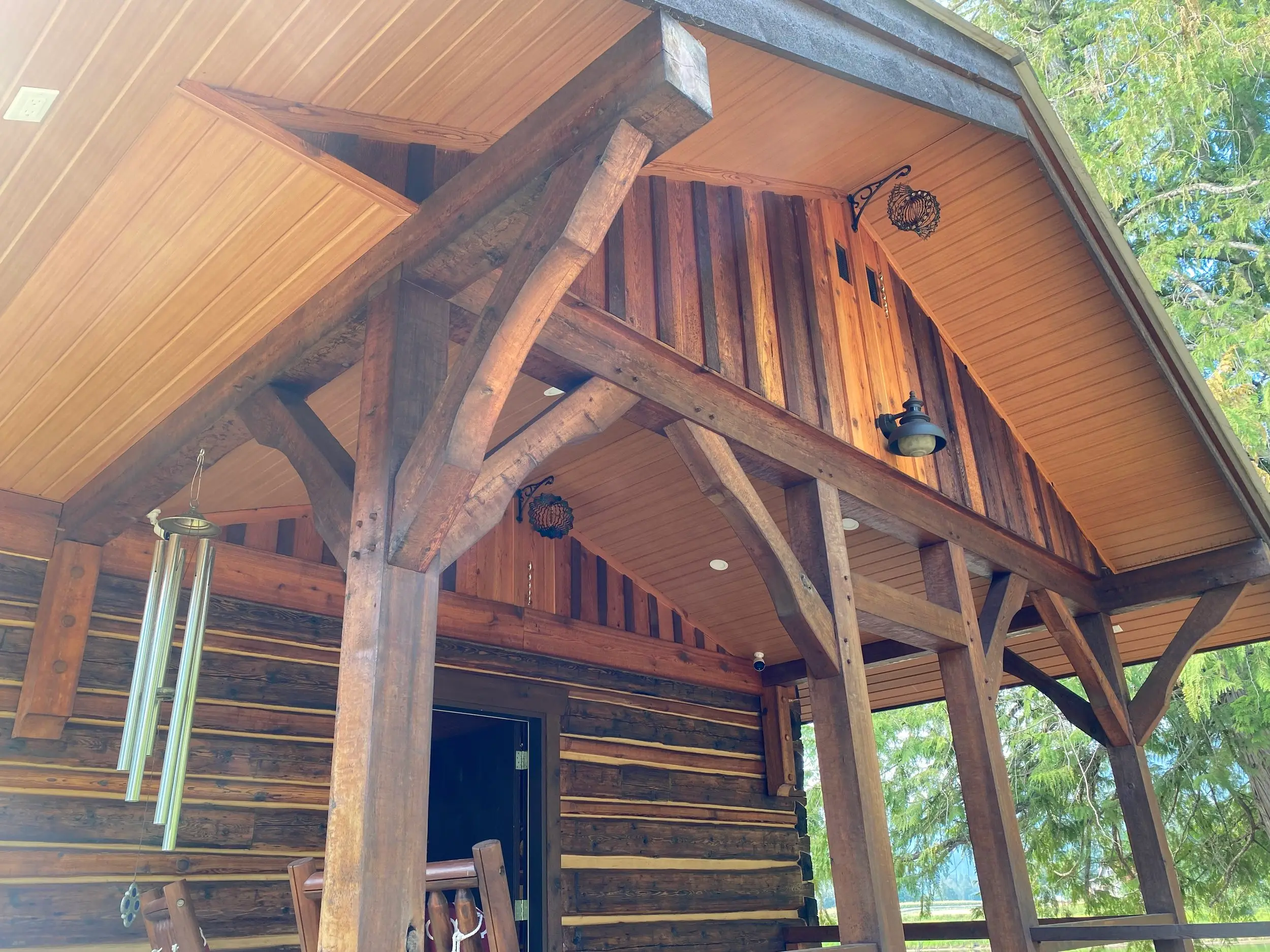

Covered timber-frame entry with an AFX woodgrain aluminum soffit ceiling — 01Soffit · timber-frame entry

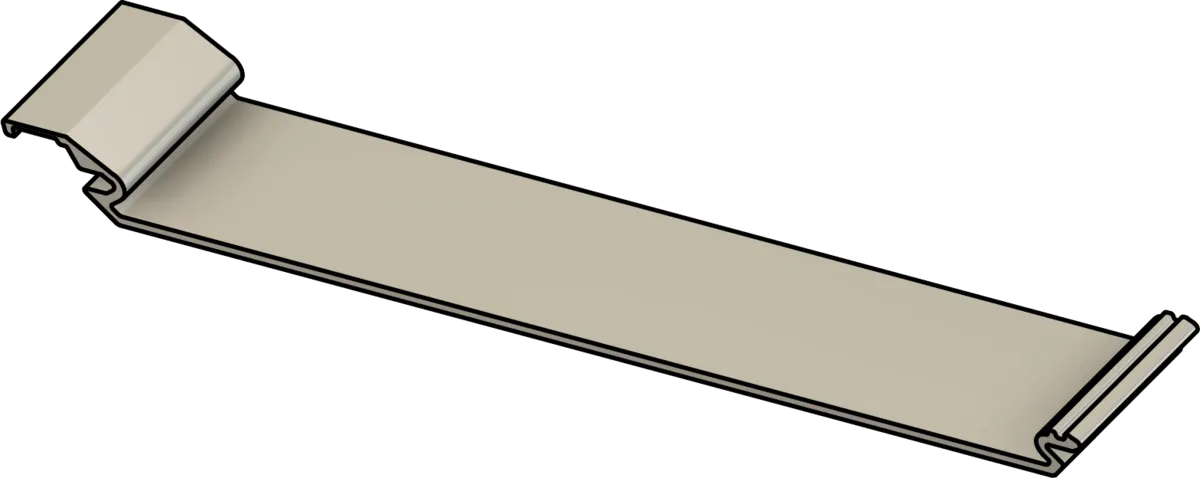

3D render of the AFX 6-inch tongue-and-groove aluminum panel

AFX-TG6 · panel

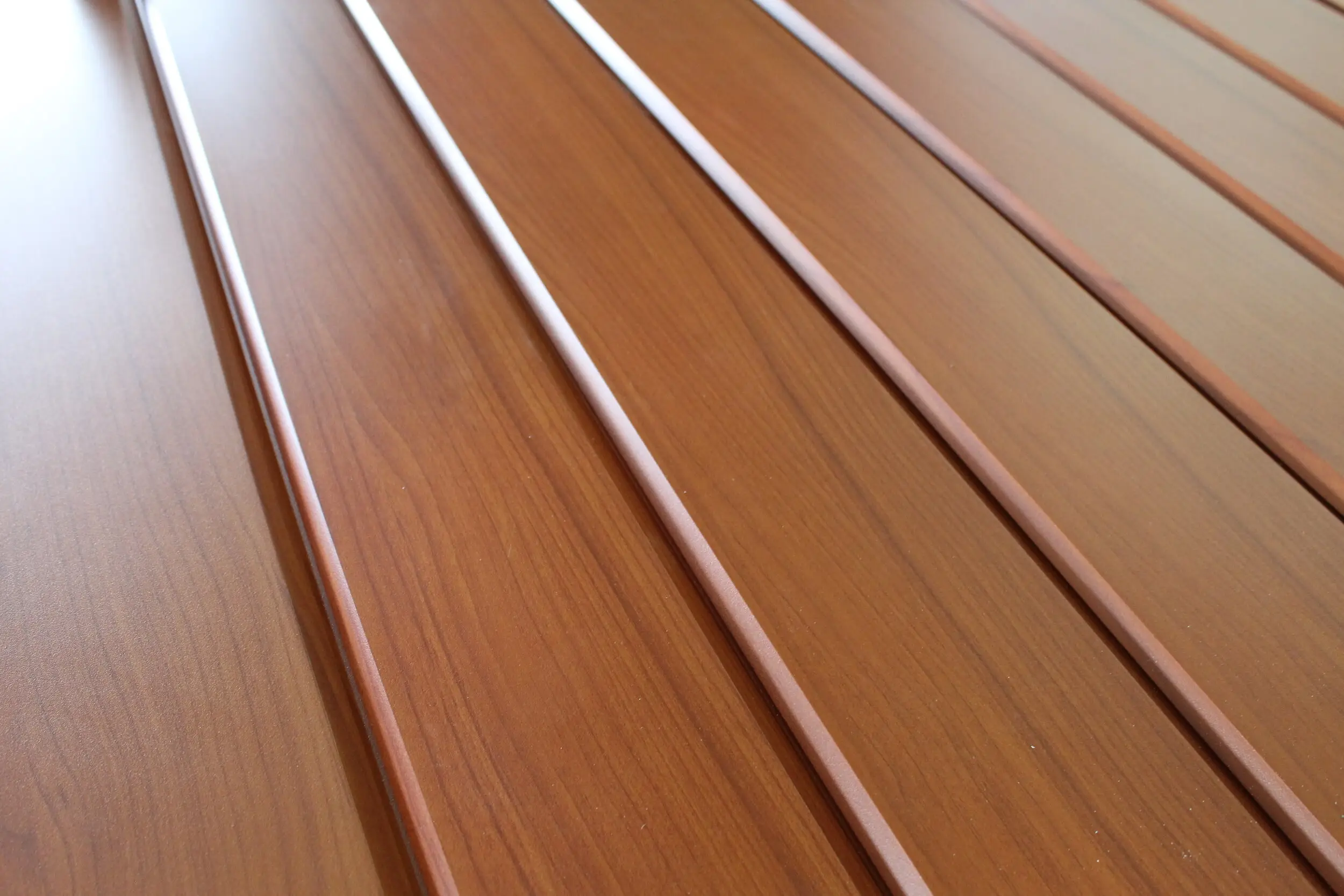

Close-up of the tongue-and-groove reveals between AFX panels — 02Reveal

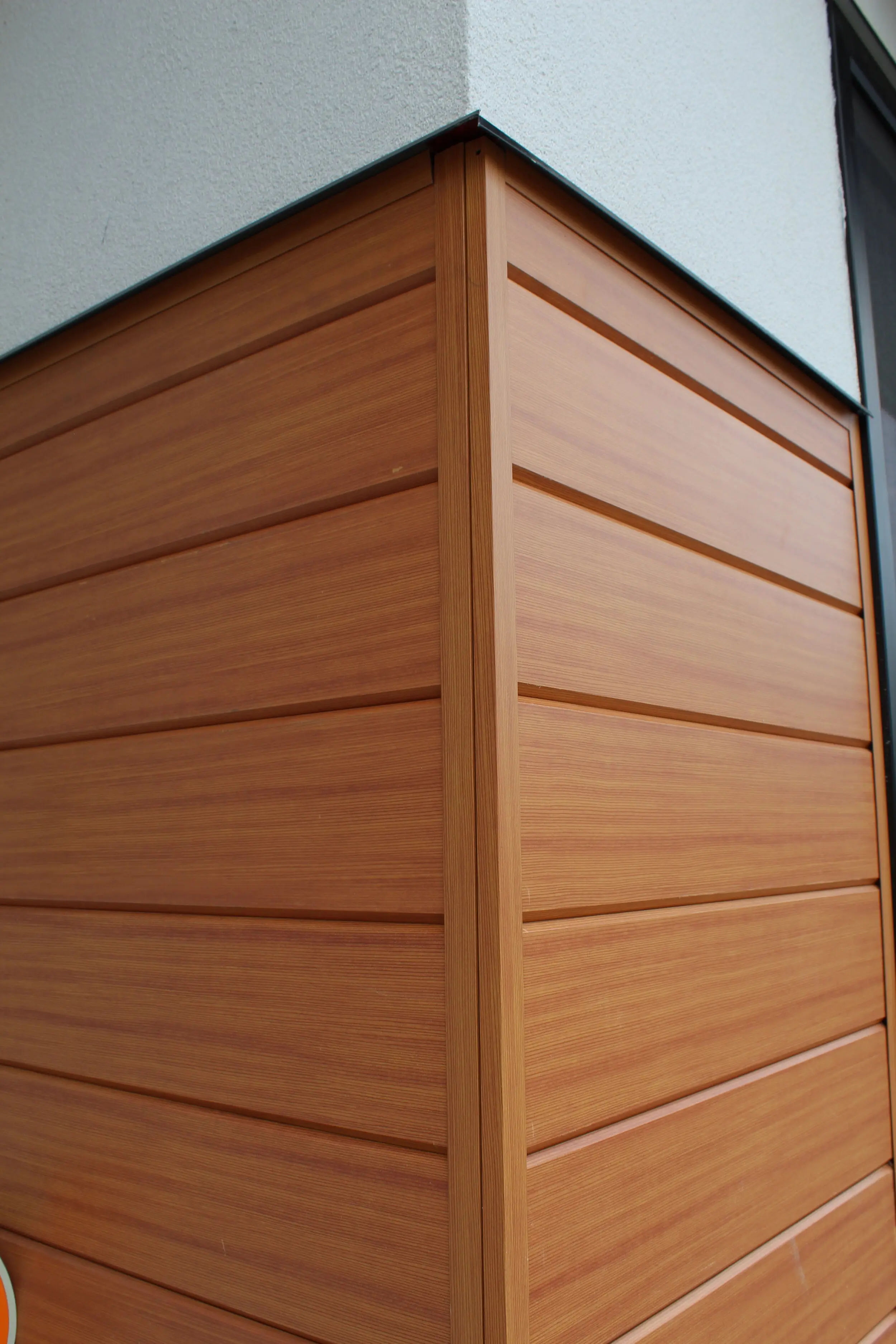

Outside corner finished with AFX woodgrain aluminum cladding — 03Outside corner

The AFX Element Line

One system for siding, soffit and feature cladding.

The Element Line pairs powder-coated extruded aluminum with a premium woodgrain finish. Panels interlock as a tongue-and-groove system on concealed clips, with matching trims to finish every edge, corner and transition.

SidingSoffitCladdingFascia accentsFeature wallsCommercial storefronts

System components
Element 4″ panel	AFX-TG4
Element 6″ panel	AFX-TG6
GripClip	SSC-014
TrueLine starter strip	SSS-003
DuoFit corner system	TCA-009 · TCB-016
J-trim	TJA-009
Twin cap trim	TFA-014 · TFB-014

View the full system

Profiles

Two reveals.
One precise joint.

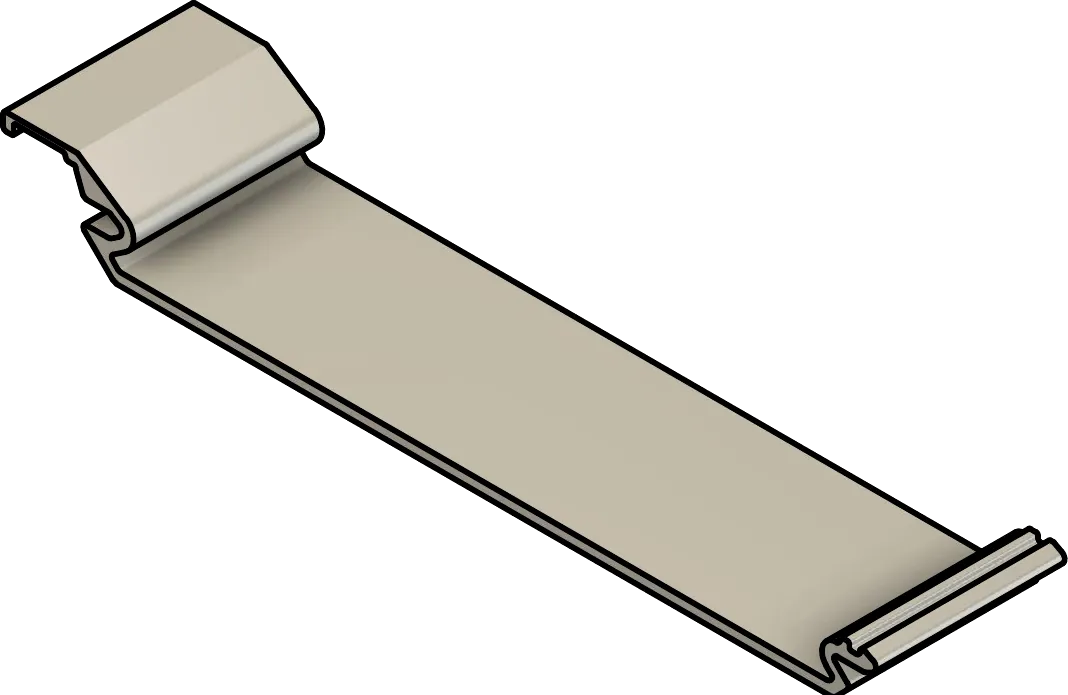

AFX-TG4

4″ profile · 101.60 mm reveal

AFX Element Line

Element 4″ panel

Tongue-and-groove cladding and soffit panel with a 101.60 mm visible reveal, installed on concealed GripClips and finished with matching trims.

Product code: AFX-TG4
Visible reveal: 101.60 mm
Overall width: 116.75 mm
Weight: 0.602 kg/m
Length: 16 ft · 4.88 m
Nominal wall: 1.60 mm

Price this profile Data sheet

SSP-040 · Rev B · Section viewAll tolerances per BS EN 755-9

Both profiles share the same edge geometry and install on the same GripClips and trims.Joint details & CAD drawings

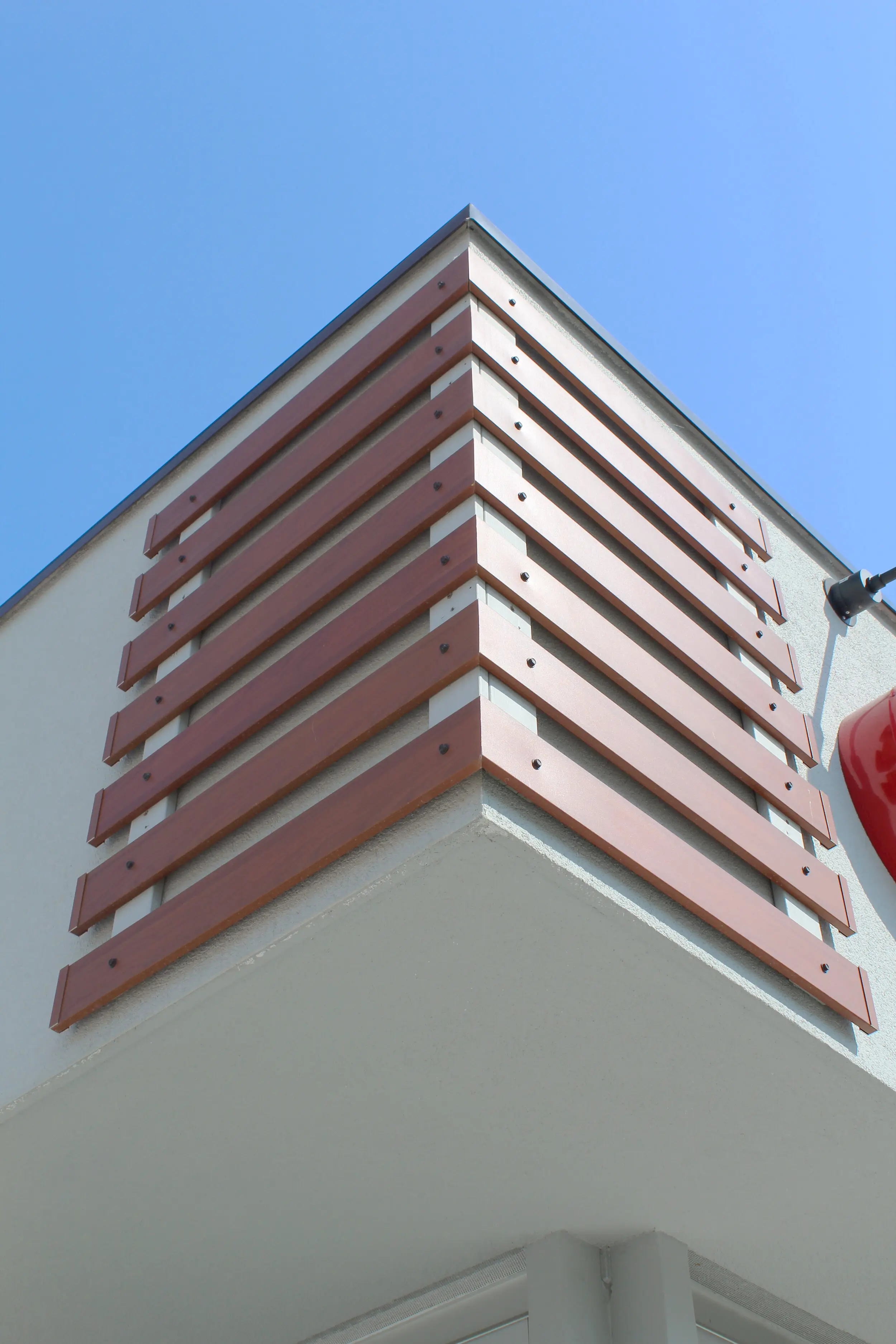

Corner of a commercial building wrapped in AFX woodgrain aluminum slats

Commercial façade · AFX Element Line

Why Aluminum F/X

Everything you like about wood. None of the upkeep.

Built for demanding exterior conditions and backed by fire-performance and coating-performance testing. It looks like wood and performs like aluminum.

No staining or sealing

No painting, staining, sealing or seasonal touch-ups. The finish is factory-applied powder coat.

Won’t rot, warp or crack

Extruded aluminum stays straight and true through freeze-thaw, sun and moisture.

Concealed fastening

Tongue-and-groove panels hide every fastener for clean, continuous architectural lines.

Non-combustible

Tested to CAN/ULC S135 for non-combustibility and CAN/ULC S102 for flame spread.

Hail and impact resistant

Impact and hail resistance that exceeds standard aluminum siding.

Critter-proof soffit

Pests can’t chew through it, so eaves and rafters stay sealed season after season.

Woodgrain finishes

Five woodgrains. One performance standard.

Every finish runs on the same Element Line panels, clips and trims. Choose on looks alone, then confirm with a physical sample.

Screen colour and lighting vary. We recommend physical samples before final selection.

Order finish samples

Installed work

On real buildings.

View all 24 projects

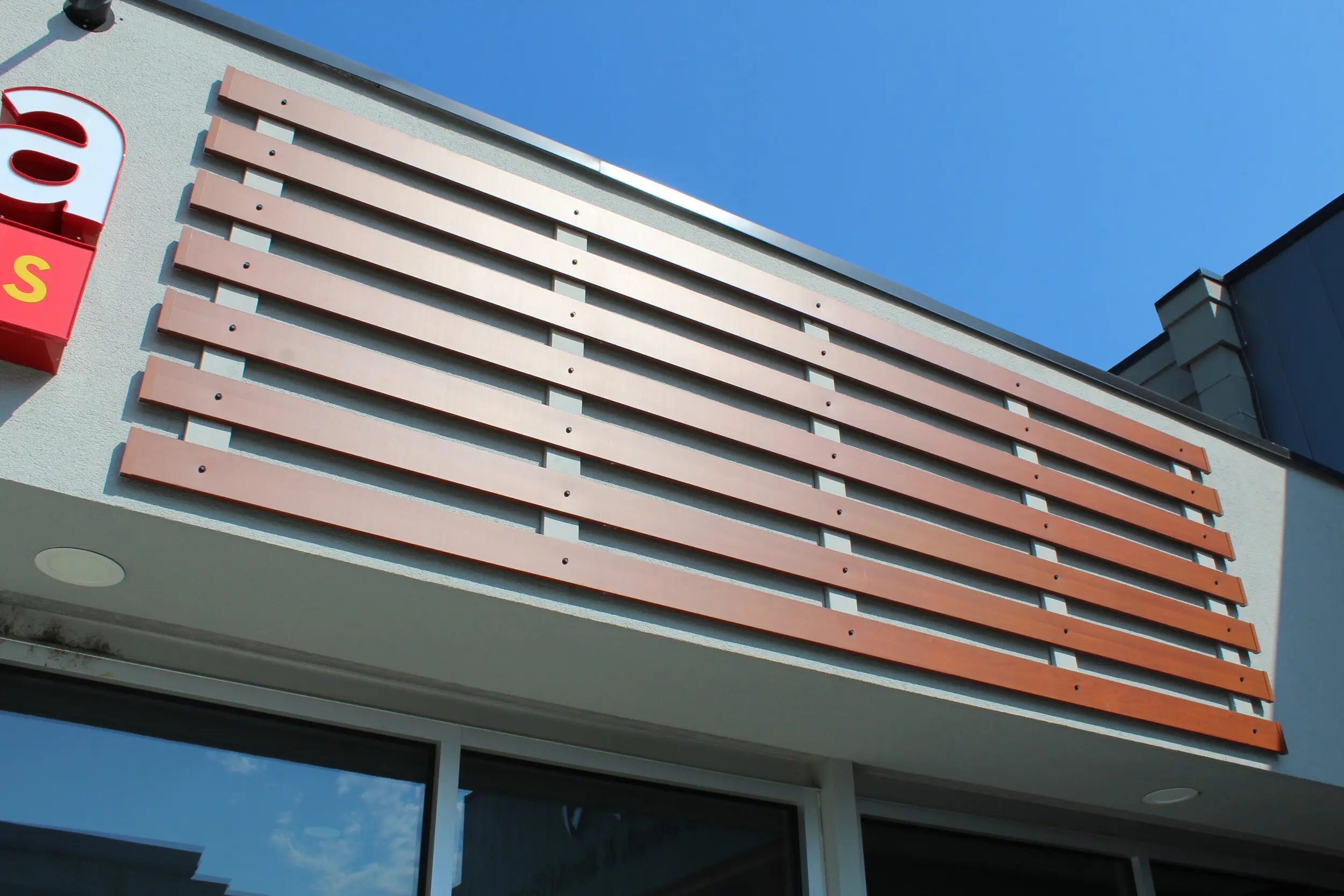

Commercial building façade with horizontal AFX woodgrain aluminum slats — 01Slatted façadeCommercial

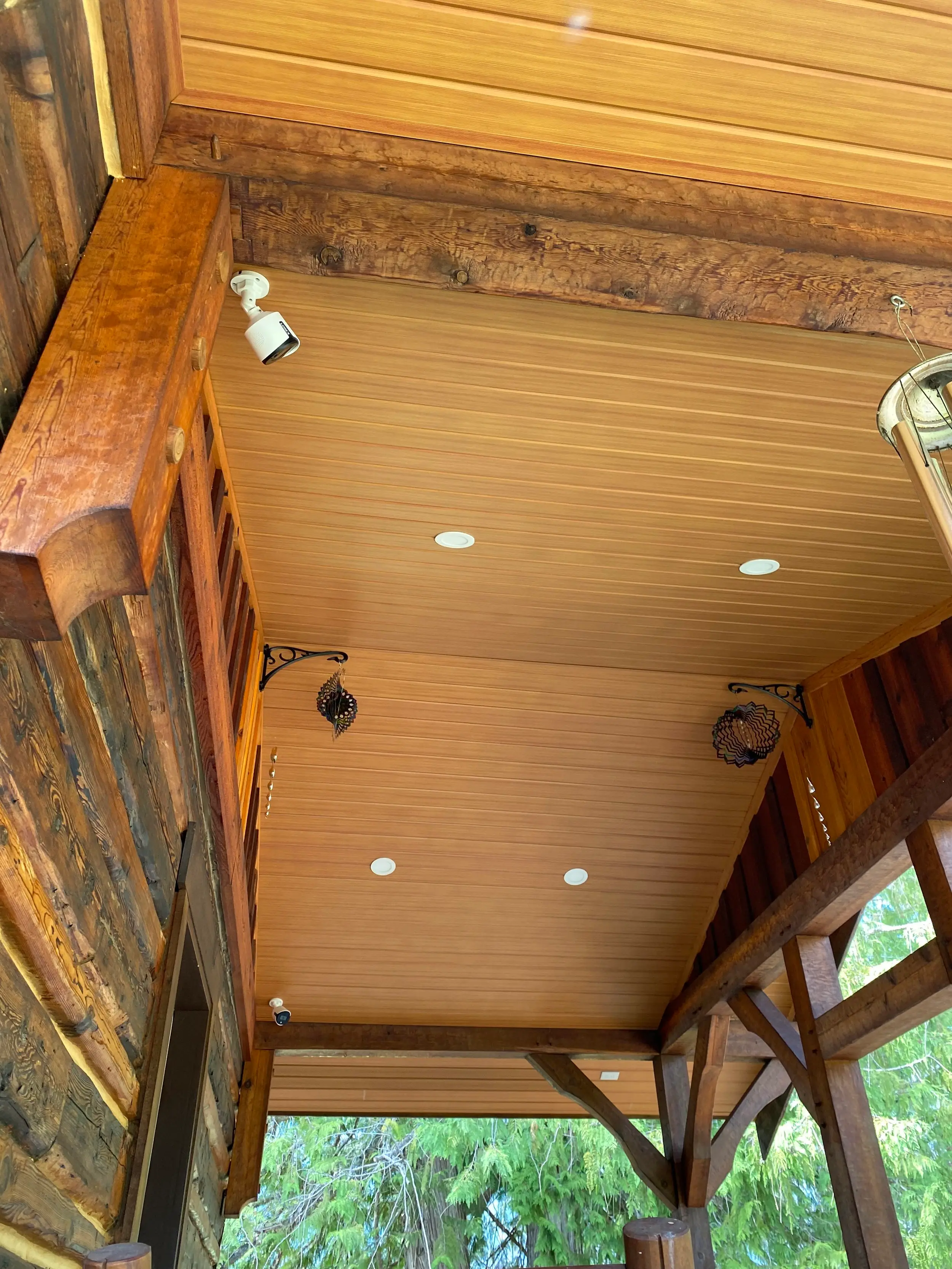

Porch ceiling finished in AFX woodgrain aluminum soffit with pot lights — 02Porch soffitResidential

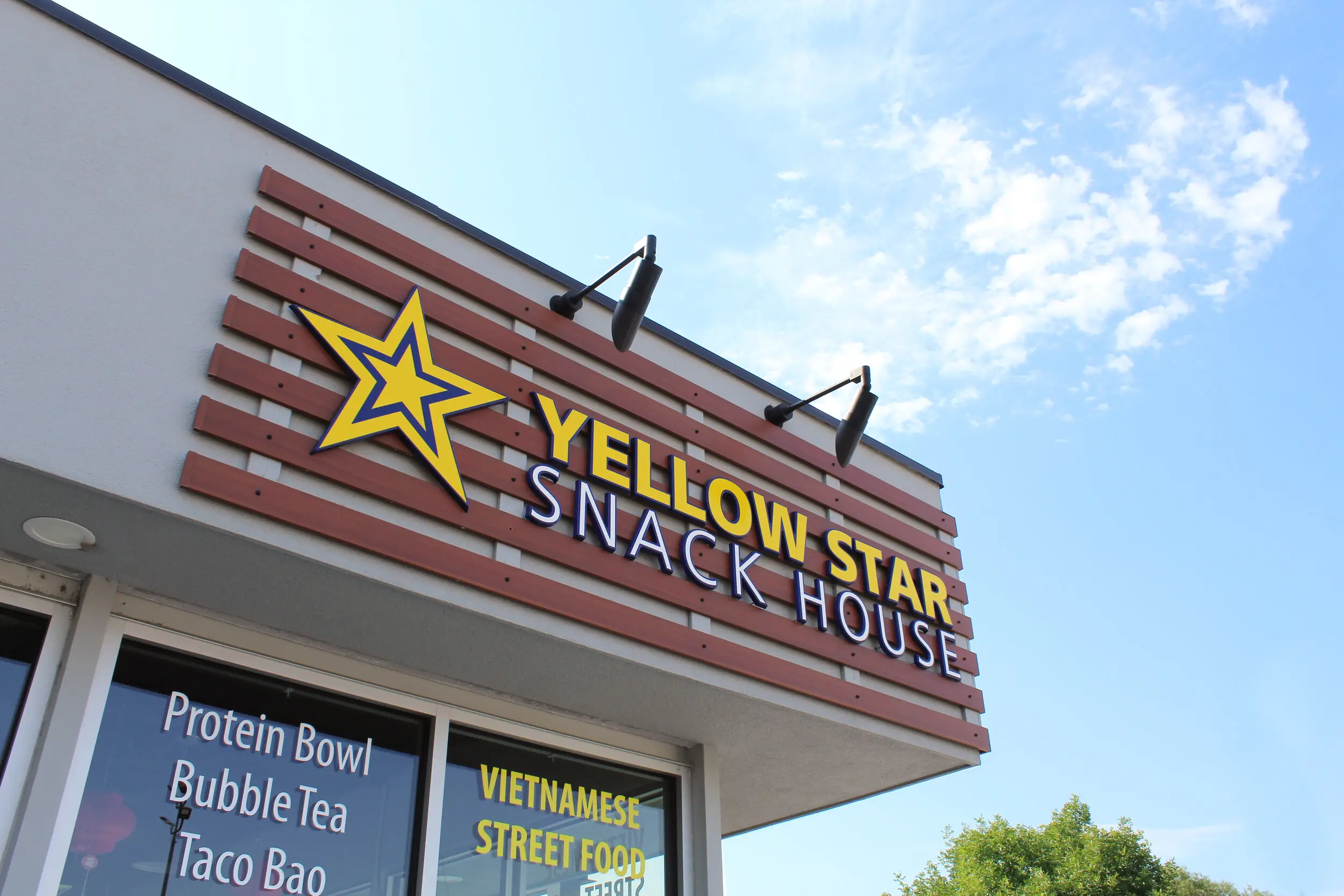

Restaurant storefront sign band clad in AFX woodgrain aluminum — 03Storefront sign bandCommercial

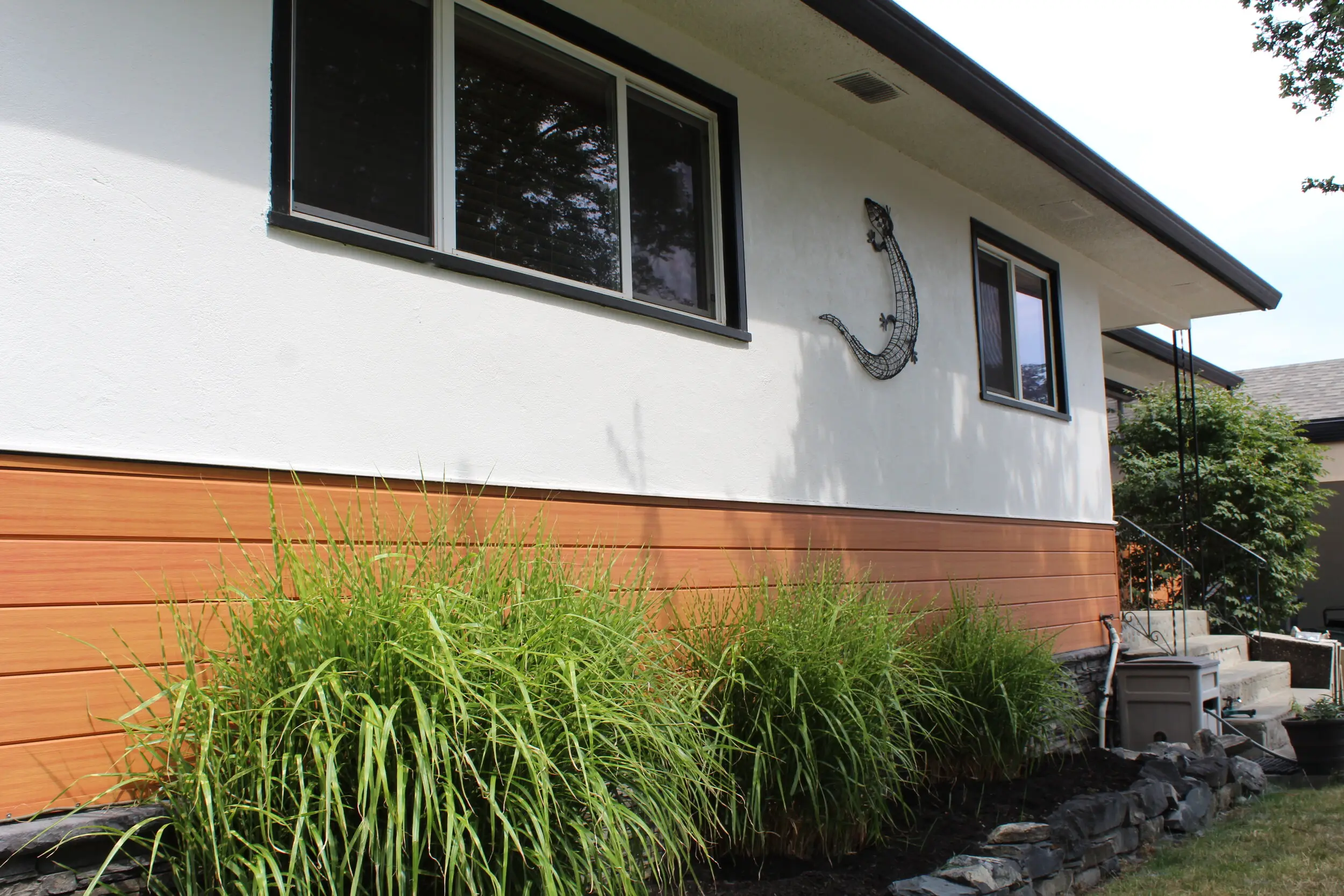

House with AFX woodgrain aluminum cladding along the lower wall — 04Exterior claddingResidential

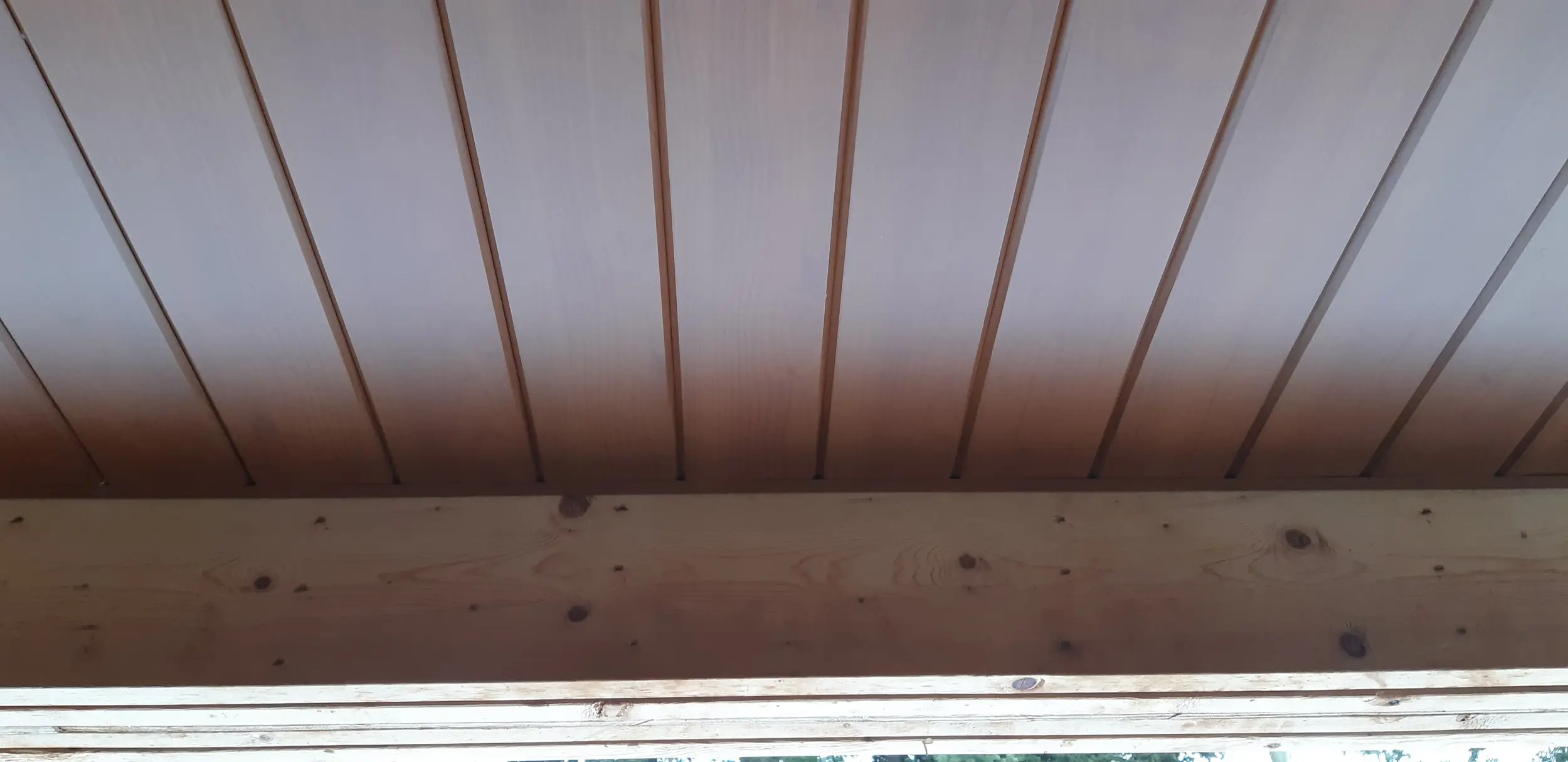

Underside of a roof overhang finished with AFX aluminum soffit — 05Overhang soffitResidential

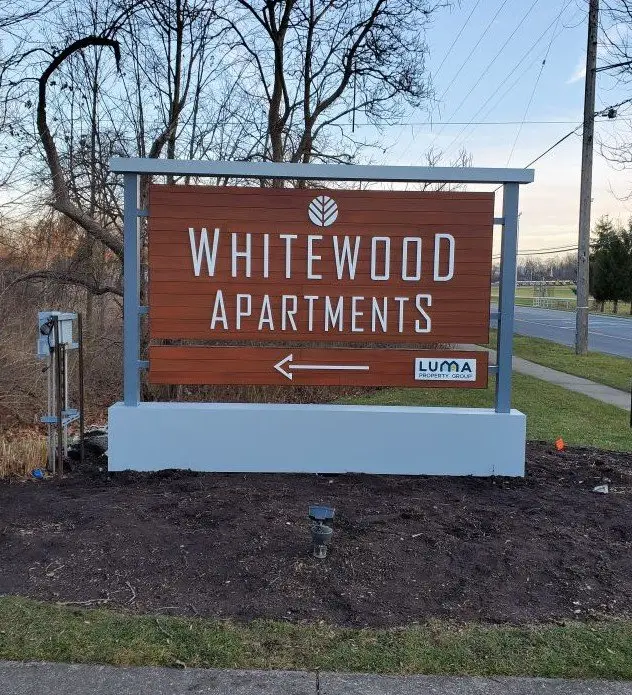

Whitewood Apartments entry sign with an AFX woodgrain aluminum panel — 06Entry signageMulti-family

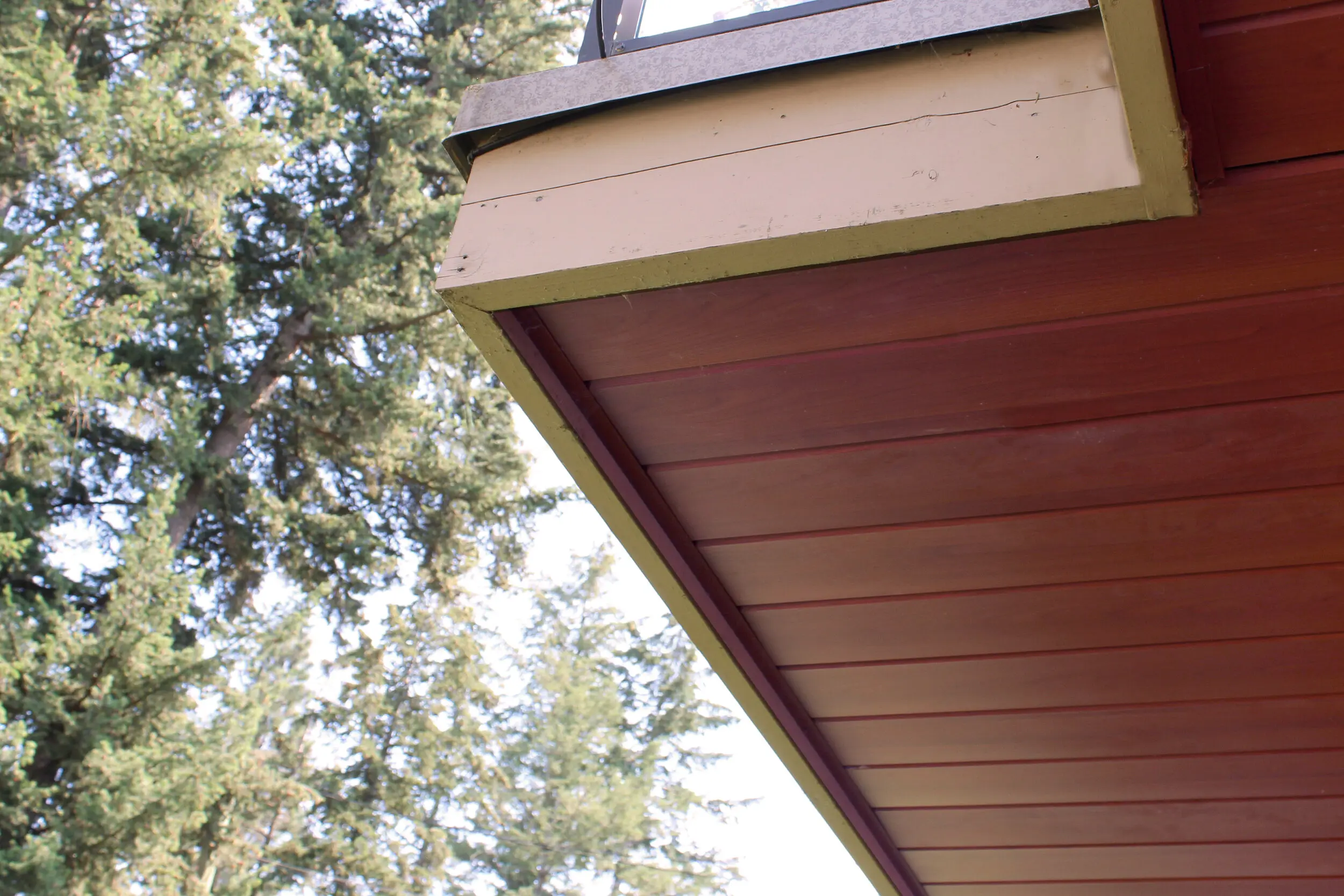

Roof eave with AFX woodgrain aluminum soffit against evergreen trees — 07Eave soffitResidential

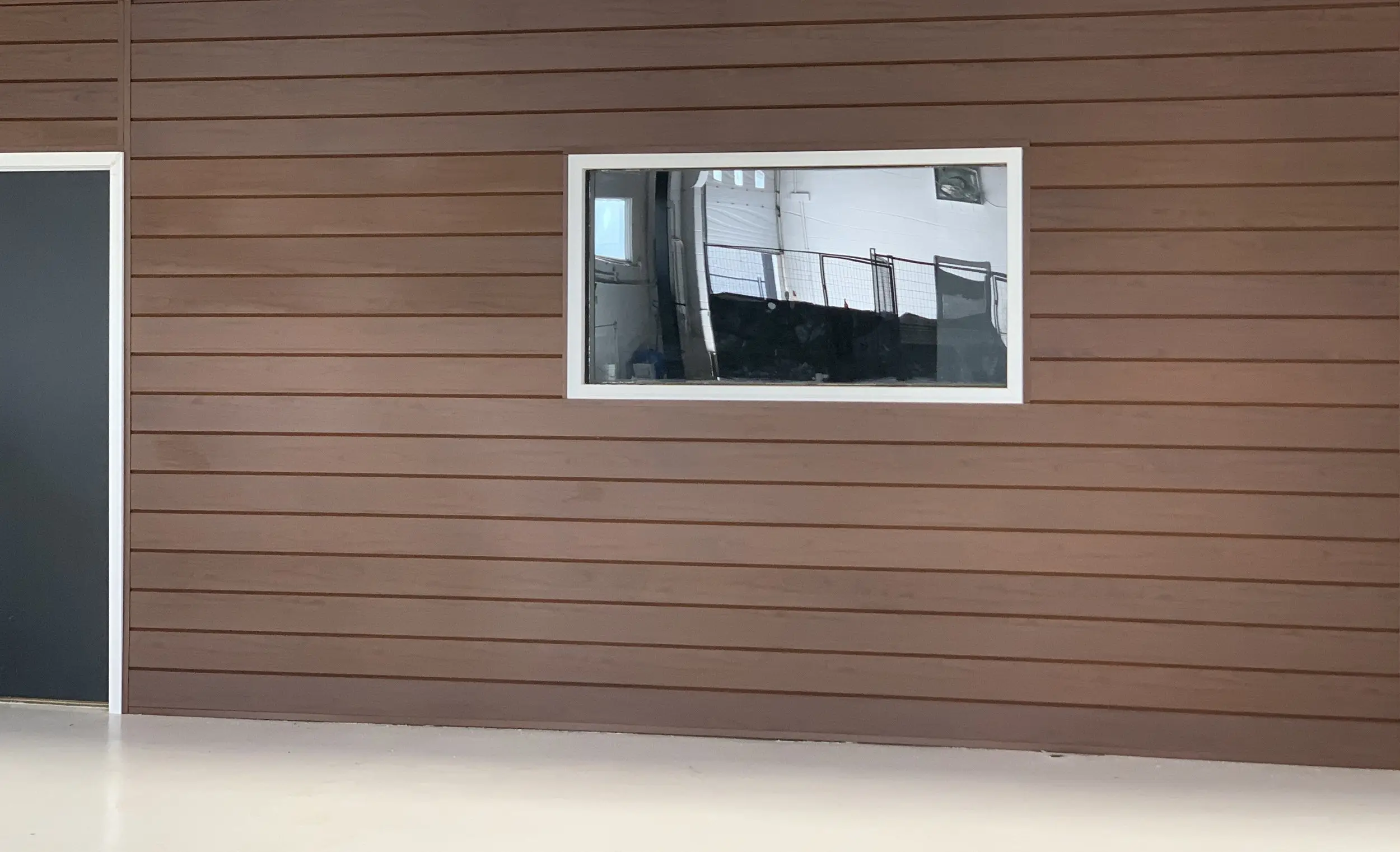

Feature wall clad in dark AFX woodgrain aluminum around a window opening — 08Feature wallInterior / feature

Technical performance

Tested to Canadian and international standards.

CAN/ULC S135Non-combustibility

CAN/ULC S102Flame spread rating and smoke developed classification

CGSB 93.2-M91Prefinished aluminum siding, soffits and fascia

CGSB 93.1-M85Prefinished aluminum sheet, coating performance

ASTM D4214Coating performance: no chalking after 2,000 hours

Impact / hailExceeds standard aluminum siding

For specifiers, builders and inspectors: the complete data sheet, installation manual and dimensioned profile drawings.

Technical data sheetPDF · Element Line Installation guidePDF · Cladding & soffit CAD profile drawingsPanels, clips & trims · on request

All technical information

Start here

Two ways in. Same quality.

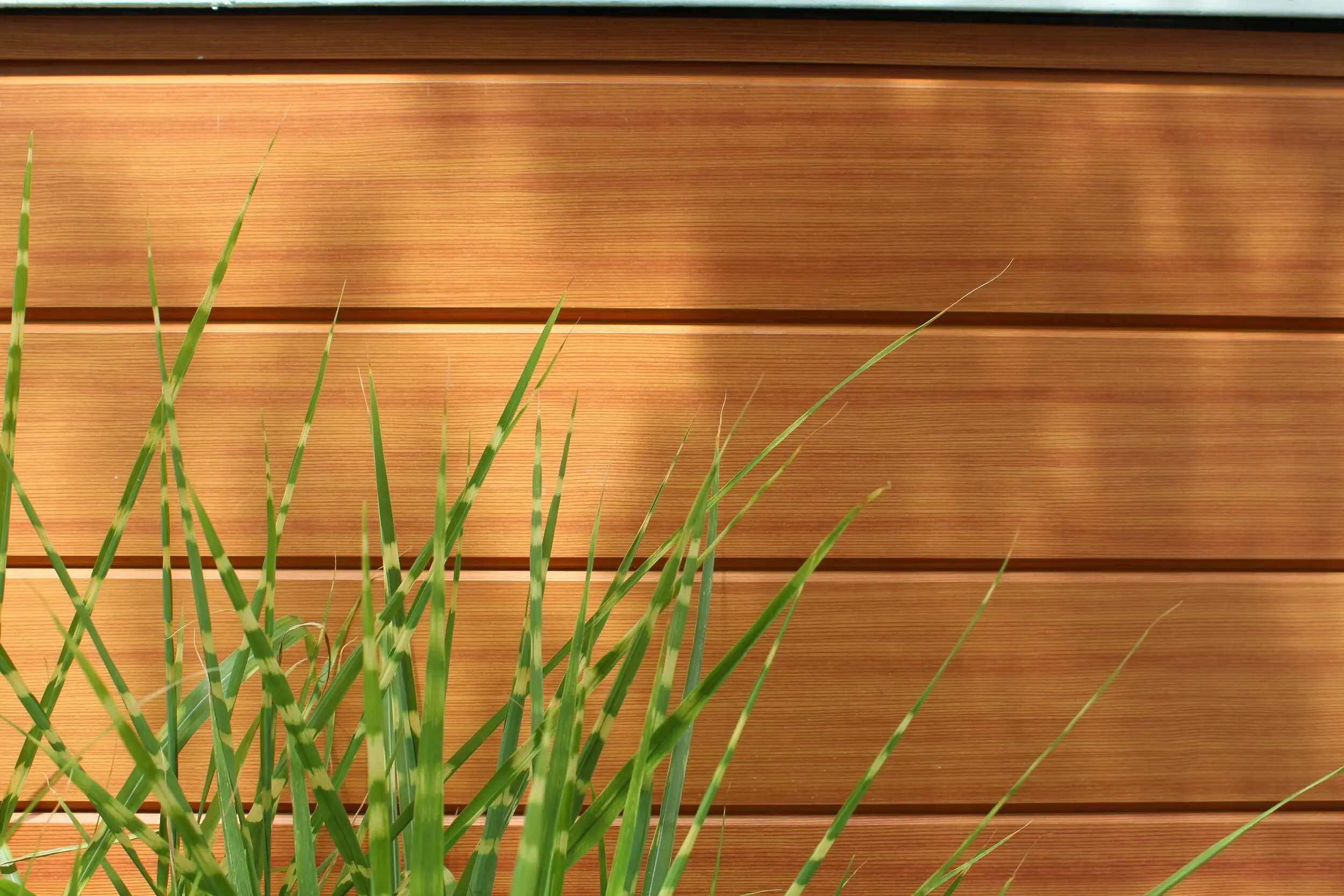

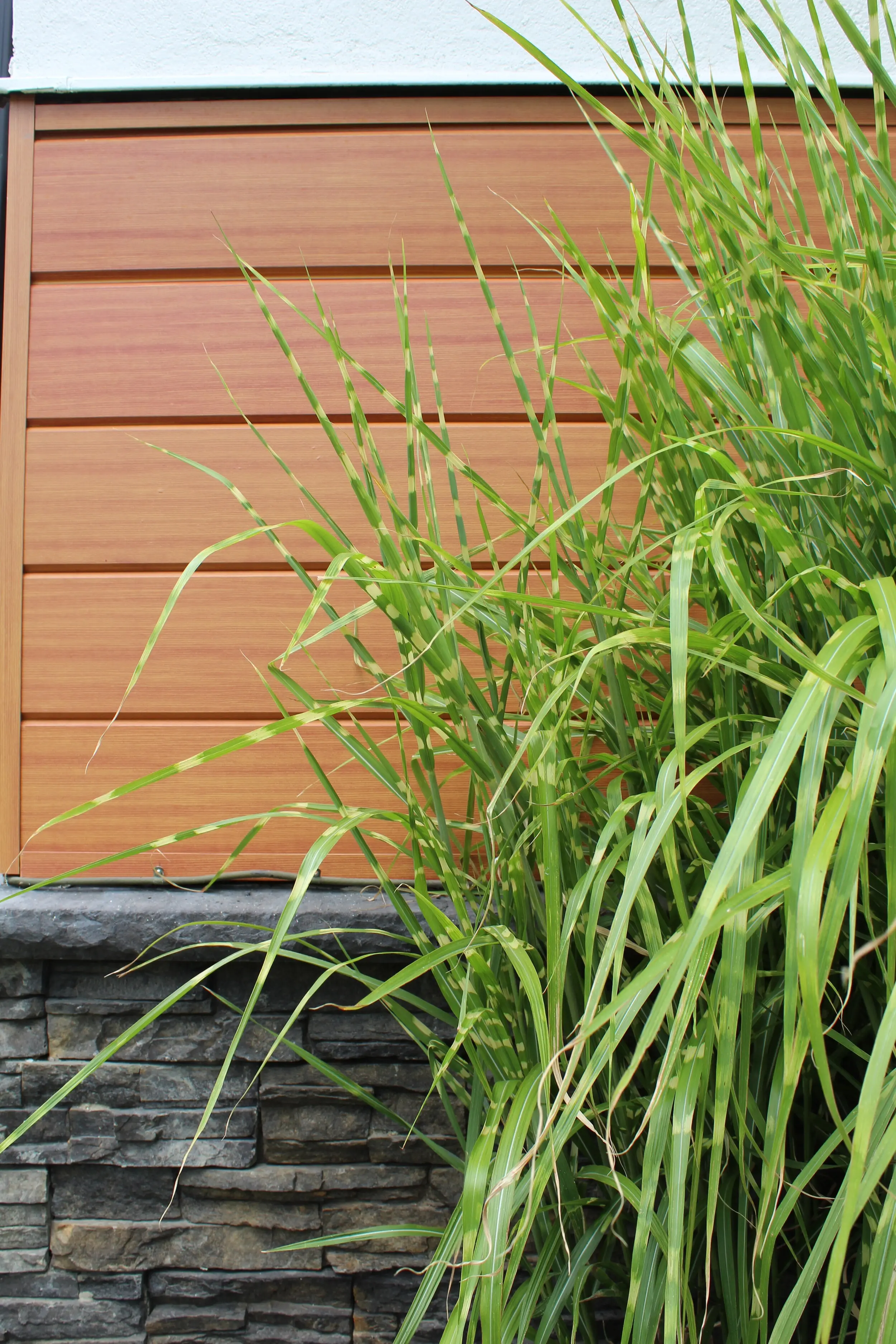

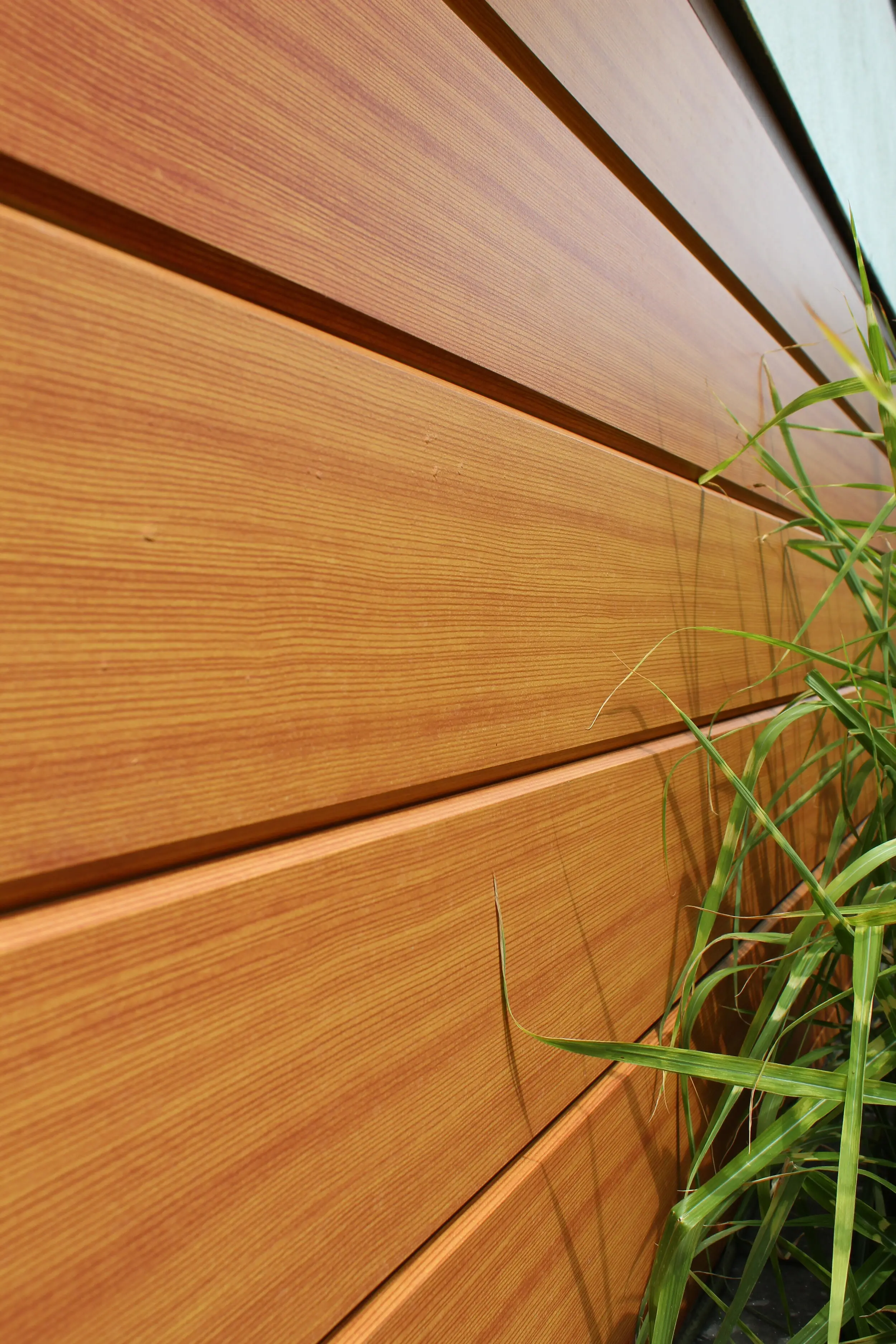

AFX woodgrain aluminum siding above a stone base with ornamental grasses

For homeowners

Renovating, replacing soffit or building new?

01Compare five woodgrain finishes and order samples
02Get a clear quote based on square footage
03Supply-only or support for your installer
04Local help from Kelowna, BC

“So glad we chose this product to replace our critter-eaten wood soffit.” — Holly L., homeowner

Order samples See finishes

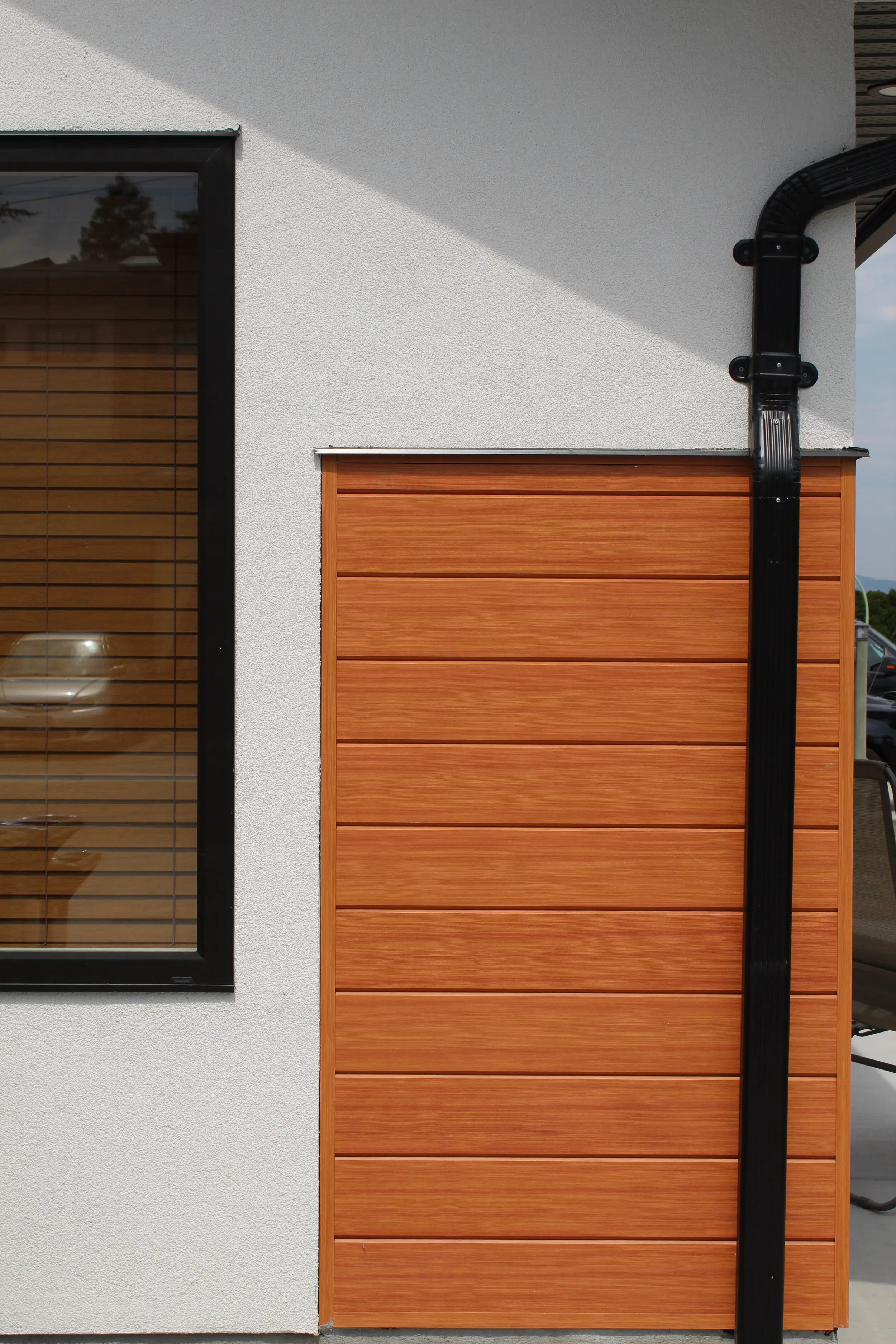

Section of AFX woodgrain aluminum cladding beside a black downspout

For contractors, builders & specifiers

Specifying or installing on your next project?

01Technical data sheet and testing standards
02Dimensioned CAD drawings for panels and trims
03Installation guide and phone support on site
04Project pricing, lead times and availability

Request project pricing Technical data

How it works

From first call to final panel.

A straightforward process with one team from quote to post-install support.

01
Inquiry
Send your project details. We’ll call to talk through requirements and answer product questions.
02
Verify & quote
We confirm specifications together and provide a detailed quote based on square footage.
03
Confirm order
In-stock items ship promptly. Custom or out-of-stock orders start with a 50% deposit.
04
Deliver & install
Panels arrive in 16 ft lengths with the install manual, diagrams and phone or email support.
05
Ongoing support
We stay available after installation for any product or installation question.
