AFX Element Line

Woodgrain aluminum cladding & soffit.

A premium tongue-and-groove system that delivers the natural look of wood with the durability of powder-coated 6063-T5 extruded aluminum. Natural wood appearance, engineered aluminum performance.

Order samples Data sheet (PDF)
Corner of a commercial building wrapped in AFX woodgrain aluminum slats

Overview

Designed for real projects, residential and commercial.

AFX profiles are lightweight, durable, fire resistant and weather-resistant, and they need minimal maintenance. A clean concealed-fastener look, efficient installation and reliable long-term performance.

SidingSoffitCladdingFascia accentsFeature wallsCommercial storefronts
System
Tongue-and-groove aluminum cladding and soffit
Material
Powder-coated 6063-T5 extruded aluminum
Supplied length
16 ft / 4.88 m
Panel profiles
AFX-TG4 (4″) and AFX-TG6 (6″)
Fastening
Concealed, on AFX GripClips (SSC-014)
Finishes
Bush Cherry, Shou Sugi Ban, Honey Maple, Red Oak, Medium Cedar
Applications
Siding, soffit, cladding, fascia accents, feature walls, commercial storefronts

Profiles

Two reveals.
One precise joint.

AFX-TG43D render of the AFX 4″ profile tongue-and-groove aluminum panel4″ profile · 101.60 mm reveal

AFX Element Line

Element 4″ panel

Tongue-and-groove cladding and soffit panel with a 101.60 mm visible reveal, installed on concealed GripClips and finished with matching trims.

Product code
AFX-TG4
Visible reveal
101.60 mm
Overall width
116.75 mm
Weight
0.602 kg/m
Length
16 ft · 4.88 m
Nominal wall
1.60 mm
Price this profile Data sheet
Dimensioned section drawing of the 4″ profile panel: 116.75 mm overall, 101.60 mm reveal
SSP-040 · Rev B · Section viewAll tolerances per BS EN 755-9
Dimensioned CAD detail A of the AFX panel leading edge at 5:1 scale
Detail A · Leading edgeScale 5:1
Dimensioned CAD detail B of the AFX panel interlocking edge at 5:1 scale
Detail B · Interlock edgeScale 5:1

Both profiles share the same edge geometry, so the 4″ and 6″ panels lock together the same way.Request CAD drawings

System components

Every edge, corner and transition, finished.

Panels, clips and matching trims are designed as one system, so terminations look as considered as the field of the wall.

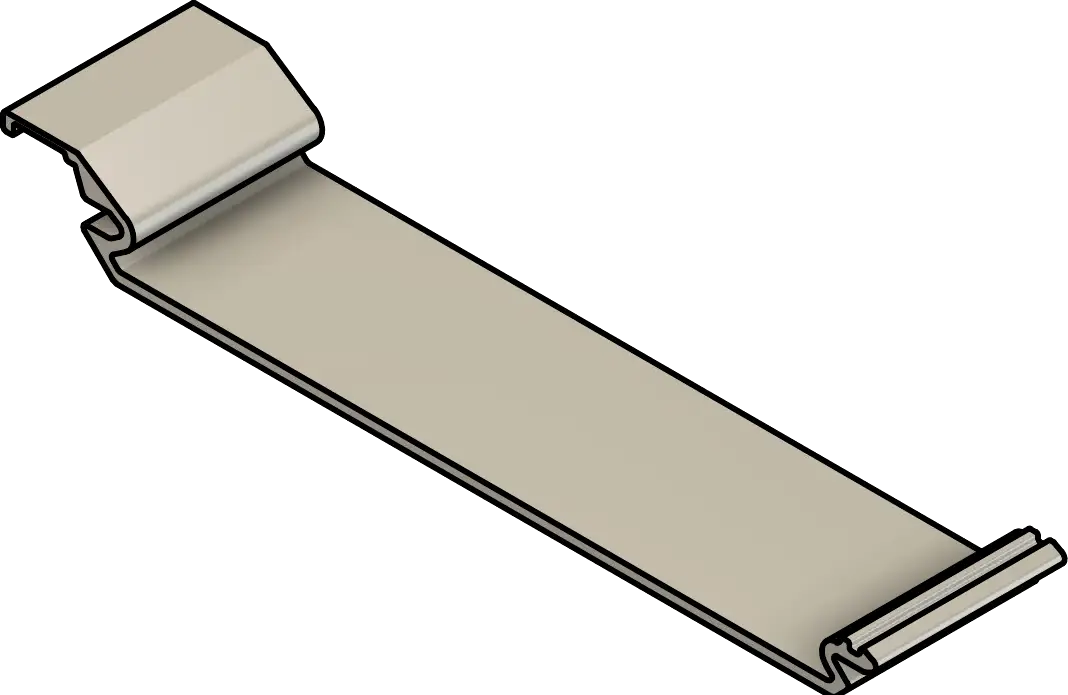

3D render of the AFX 4-inch tongue-and-groove panel

AFX-TG4 · Element 4″ panel

  1. 01

    Element 4″ panel

    Tongue-and-groove cladding and soffit panel, 101.6 mm reveal.

    AFX-TG4
  2. 02

    Element 6″ panel

    Tongue-and-groove cladding and soffit panel, 152.4 mm reveal.

    AFX-TG6
  3. 03

    GripClip

    Concealed mounting clip. Slides to allow for thermal expansion.

    SSC-014
  4. 04

    TrueLine starter strip

    Installed at the lowest point of the finished wall to start the first course.

    SSS-003
  5. 05

    DuoFit corner system

    Two-piece universal corner. The same extrusions form inside and outside corners.

    TCA-009 · TCB-016
  6. 06

    J-trim

    Vertical termination where a panel run does not end at a corner.

    TJA-009
  7. 07

    Twin cap trim

    Snap-on finishing base and cap. Non-structural, allows for linear expansion.

    TFA-014 · TFB-014
Close-up of the tongue-and-groove reveals between AFX panels
ATongue-and-groove reveal
AFX woodgrain aluminum corner trim against a clear sky
BCorner trim

Available woodgrain finishes

Choose the wood look without the wood upkeep.

Honey Maple woodgrain aluminum finish sample01 / 05

Honey Maple

Light finish

Every AFX finish comes on the same Element Line panels, clips and trims, so you can choose the colour on looks alone.

Screen colour and lighting vary. We recommend physical samples before final selection.

Order Honey Maple sample

Applications

One system, many surfaces.

See installed projects
Building entry with AFX woodgrain aluminum cladding beside a glass door

Exterior cladding

Horizontal or vertical runs for full elevations, accent bands and entries.

Covered patio with an AFX woodgrain aluminum soffit ceiling

Soffit

Wood-look porch ceilings and eaves that pests can’t chew through.

Restaurant storefront sign band clad in AFX woodgrain aluminum

Commercial storefronts

Durable, low-maintenance warmth for sign bands and street-facing façades.

Whitewood Apartments entry sign with an AFX woodgrain aluminum panel

Feature walls & signage

Accent walls, monument signs and architectural details.

Why Aluminum F/X

Low maintenance, by design.

No staining, painting, warping, cracking, peeling or rot, and a weather-resistant exterior finish with a clean architectural woodgrain look.

No staining or sealing

No painting, staining, sealing or seasonal touch-ups. The finish is factory-applied powder coat.

Won’t rot, warp or crack

Extruded aluminum stays straight and true through freeze-thaw, sun and moisture.

Concealed fastening

Tongue-and-groove panels hide every fastener for clean, continuous architectural lines.

Non-combustible

Tested to CAN/ULC S135 for non-combustibility and CAN/ULC S102 for flame spread.

Hail and impact resistant

Impact and hail resistance that exceeds standard aluminum siding.

Critter-proof soffit

Pests can’t chew through it, so eaves and rafters stay sealed season after season.

Feature wall clad in dark AFX woodgrain aluminum around a window
“So glad we chose this product to replace our critter-eaten wood soffit. We no longer have unwanted visitors in the rafters, chewing their way into the cabin!”
Holly L. · Homeowner

Quote & samples

Ready to price your project?

Tell us your location, project type, approximate size and timeline. We’ll follow up with pricing, samples or the right next step.

Request a quote Order samplesor call 250-258-9788
